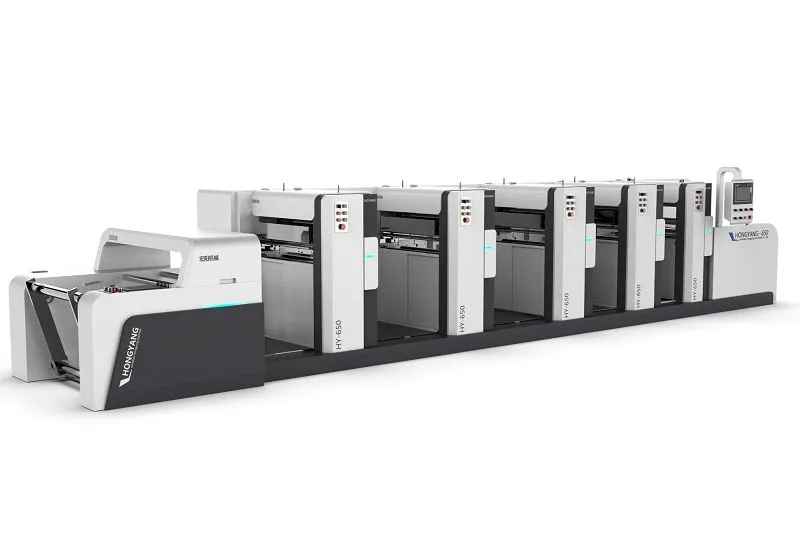

Paper Roll Printing Machine
Product description：
Paper Roll Printing Machine
TECHNICAL DATA
|
Model |
HSR-1000 |
|
Max Web Width |
1100mm |
|
Max Printing Width |
1050mm |
|
Printing Circumference |
412～925mm |
|
Max Unwinding Diameter |
1300mm |
|
Max Rewinding Diameter |
1300mm |
|
Printing Gear |
1/8cp |
|
Max Printing Speed |
150m/min |
|
Plate Thickness |
1.7mm |
|
Paste Version Tape Thickness |
0.38mm |
|
Substrate Thickness |
40-150gsm |
PRODUCTS FEATURE:
1. The ink supply system of the paper roll printing machine adopts an open single doctor blade system. The doctor blade has a unique positioning device, which can be easily installed and removed without tools, and the contact pressure with the anilox roller is adjusted by precision screws.
2. Each color unit is equipped with an ink lifting roller device to ensure that the ink is fully pressed into the hole of the anilox roller to prevent ink flying under high-speed conditions. The ink tank of the paper roll printing machine made of stainless steel, and the anilox roller can be quickly replaced without tools.
|
NO |
Model |
Specifications |
|
1 |
Max Unwinding Diameter |
1300mm |
|
2 |
Max Rewinding Diameter |
1300mm |
|
3 |
Printing Circumference |
412-925mm |
|
4 |
Max Web Width |
1100mm |
|
5 |
Max Printing Width |
1050mm |
|
6 |
Gearing |
1/8CP,pitch of teeth :3.175 |
|
7 |
Lubrication System |
Automatic lubrication system |
|
8 |
Power supply |
380V 3PH 50HZ |
|
9 |
Printing Speed |
5-150m/min |
|
10 |
Plate thickness |
1.7mm |
|
11 |
Tape thickness |
0.38mm |
|
12 |
Thickness of paper |
60-250gsm |
|
13 |
Frame |
30mm |
|
14 |
Size |
7.5*2.1*1.75m |
|
15 |
Weight |
6T |
1.When the paper roll printing machine is stopped, the anilox roller continues to rotate slowly to prevent the ink from accumulating too thick on the anilox roller. Four high-precision ceramic anilox rollers (Lpi is determined by the customer).
2.The printing roller is made of aluminum alloy. The two ends are shoulder iron structures, which can be directly locked or opened with pneumatic locks without any tools. The roller shoulder iron is directly mounted on the hand crank arm for adjusting the plate pressure and printing pressure to ensure the stability of the plate pressure and printing pressure.
OUR SERVICE:
● Support online and offline self selected predelivery machine inspection.
● Overseas offices and agents in some countries.
● Presales and after sales team with 24 hour online service.
● Engineer dispatch service, support on site factory installation and training.
● We have a 1,000 square meter warehouse to store machines and related accessories.
WHY CHOOSE US ?
● Provide a one stop solution for paper cup production lines, highly centralized and automated.
● Among the same type of manufacturing plants, we have price and quality advantages, cost effective choice.
● Among the same type of manufacturing plants, we have price and quality advantages, cost effective choice.
Automatic DIE CUTTING MACHINE Packing Style:
In wooden case or wooden pallets accordingly
