I Want To Buy A Paper Cup Machine. How Should I Choose?

I.Basic Types and Selection of Paper Cup Machines

According to the degree of automation and applicable scenarios, paper cup machines are mainly classified into three categories, with significant differences in investment cost, production capacity and operational complexity:

1. Fully automatic paper cup machine: It integrates the entire process of automated operation such as paper feeding, forming, bottom punching and edge rolling. The production speed can reach 80-100 pieces per minute, suitable for medium and large-scale production. However, the equipment cost is relatively high and the requirements for power are also higher (the typical configuration is 380V three-phase power).
2. Semi-automatic paper cup machine: Some processes require manual intervention (such as paper feeding and cup collection), with a production capacity of usually 20-30 cups per minute. It has a relatively low price and is easy to maintain, making it suitable for initial trial production or small workshops.
3. Hollow cup machine: Specifically designed for the production of hot drink cups, it enhances the heat resistance and structural strength of the cup body through heating and shaping, making it suitable for scenarios such as coffee cups that need to withstand heat and pressure.
4. Suggestion: If you plan to focus on B-end markets such as fast food and chain tea beverages, fully automatic models are more conducive to stable delivery.



Ii. Core Performance Parameters: Determine production matching degree

When making a purchase, pay special attention to the following technical indicators, as they are directly related to whether the equipment can meet your production goals:

1. Production capacity: The common models produce between 80 and 100 cups per minute , and the high-speed models can reach more than 200 cups per minute (High Speed Double Wall Paper Cup Making Machine GD-280).

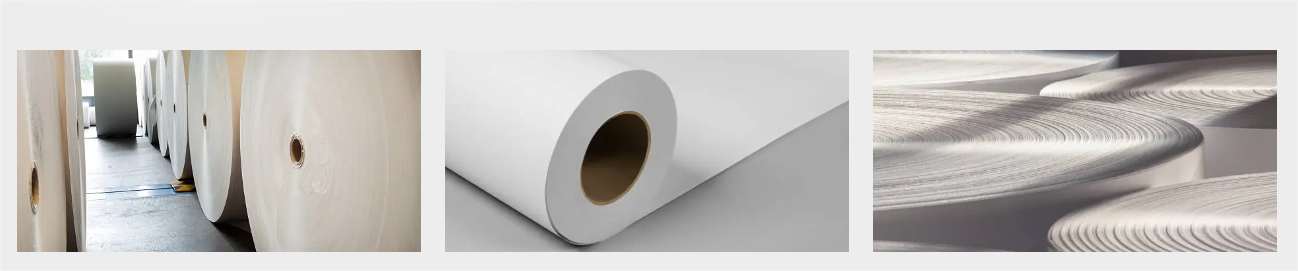

2. Applicable paper materials: Single-sided PE coated paper is the mainstream. Some models are compatible with double-sided coated or wax-coated paper (wax-coated paper is only suitable for cold drink cups).
3. Paper cup specifications: The adjustable range supported by the equipment is crucial. For example, the Disposable Paper Cup Making Machine MB-C12 model is suitable for 2.5-12 ounces. If a larger size is required, extended models such as MB-C35 need to be selected.
4. Power and energy consumption: The typical power is approximately 11kW. It is necessary to confirm whether the factory's power configuration (220V/380V) matches.
5. Equipment size: For example, the Automatic Paper Cup Machine MB-C12H occupies approximately 2.75×1.35×2m and weighs up to 2500KG. Sufficient space needs to be reserved and the ground load-bearing capacity strengthened.





MAIN PARAMETERS
Parameter	Range
Production capacity	80 to 100pcs/min (High speed can reach 200pcs/min)
Materials	Single-sided/Double-sided PE coated paper Wax-coated paper
Specifications	2.5-12 oz (Customizable)
Power	11KW 220V/380V
Dimension	2.75×1.35×2m



Iii. Workflow and Key Technologies: Understanding How the Equipment Operates

The core process chain of a paper cup machine includes paper feeding, forming, bonding, quality inspection and other links. Each link relies on different technologies to achieve automation:

1. Paper feeding and cutting: The automatic paper feeding roller, in combination with the tensioning device (such as tensioning frame + compression roller), ensures that the paper is conveyed smoothly, avoiding wrinkles that may affect the cutting accuracy.
2. Cup body forming: The paper is pressed into a cylindrical shape by a hot roller, and components such as the Swiss Leister heater ensure the bonding strength.
3. Cup bottom stamping and sealing: The bottom stamping is completed by a rotary table die, and then the cup bottom structure is reinforced through edge rolling and knurling.
4. Note: The stability of temperature control and the precision of the mold during the forming process directly determine the sealing performance of the paper cup - this is the key to preventing leakage.



Iv. Quality Assurance and Inspection Technology

Modern paper cup machines generally introduce automated detection modules, significantly reducing the rate of defective products:

1. Process control optimization: The PLC system adjusts temperature and pressure parameters in real time; The servo motor precisely controls the bottom feeding position to prevent deviation.
2. Physical performance guarantee: The "rolled edge reinforcement" on the cup mouth and the "rolled pattern" on the cup bottom enhance the load-bearing capacity and prevent deformation.



Consider based on your actual production situation.



The paper cup machine of GOOD Machinery is your best choice.
