Auto Stripping Machine
Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement.
Product description：

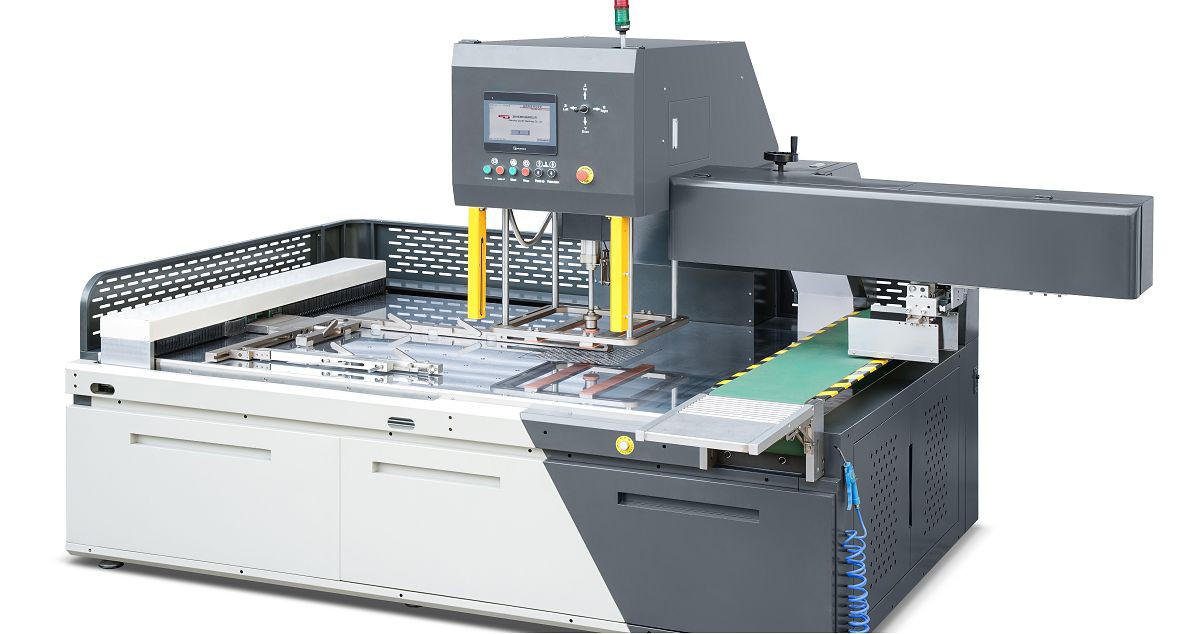

Model: 920 1080 Model Automatic Paper Blanking and Waste Stripping Machine Pictures
Options:
We can do 1080 blanking machine size, cater for different model of die cutting machine
We can do dual head or double head blanking machine
We can do rotary head
We can do rotary head and robotic arm to pick up the clear paper product and auto stacking in a conveyor belt.
Specification
|
Machine technical parameters |
|
|
Model |
920(Single work unit) |
|
Machine floor area (L X W X H) |
2400×1800×1980 mm |
|
Max sheet size |
920×680 mm |
|
Min sheet size |
550X400 mm |
|
Max pile height |
100 mm |
|
Min pile height |
40 mm |
|
Max blanking size |
420×420 mm |
|
Min blanking size |
30×30 mm |
|
Max speed |
20 cycles/minute |
|
Pressure (bar) |
70 bar |
|
Total power |
4.2 kw |
|
Net weight |
1800 kgs |
|
Gross weight |
2000 Kgs |
Auto Blanker Main features
● Fully Automatic.
● Single head blanking system for running sheets with nested blanks.
● Heavy-duty, quality-built single support base.
● Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement.
● Operator-friendly touch screen for quick and simple programing.
● Can be customized according to customers' job demand.
● Automatic lubrication system with timely maintenance extends the service life of the machine.
● Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
● The complete machine takes much less space and is equipped with PLC, touch screen interface in operation.
● Used to replace manual labor, improving product quality and enterprise profit.
Payment terms
30% down payment; 70% by T/T at sight before shipment
Delivery time
About 1 month after receipt of down payment
Installation
● Installation of the machine will be done by our engineers. Installation and training is free of charge and the whole period is 3 working days. Extended training will be charged USD200 per person per day.
● Customer is also responsible for the expenses of round-trip air tickets, hotel accommodation, meals, and local transportation for engineers. If a translator is required, it will be on customer's account.
● Remarks: During pandemic, usually we provide distance support when comes to installation.
Warranty
● There is 1 year warranty (from the date of installation) on all parts, mechanical and electrical, due to defect in manufacturing, except for consumable parts such as belts, air nozzles, etc. and if "accident" or mal-operation has occurred.
Remarks
● All the above conditions are subject to our final confirmation.
OUR PRODUCTION LINE:
WHY US?
We have 1000 square meter ware house for parts stock easy available
Online guide for installation.
24*7 online service
Can send engineer to your factory to support with installation and training
Make the 100% inspection before the shipments.
Provides one year guarantee for machine quality
Make the 100% inspection before the shipments.
Provides one year guarantee for machine quality
Packing and delivery:
In wooden case or wooden pallets
